Heavy Duty Horizontal Lathe Machine CW61160L

Request a Quote
Out of Stock
Features: 1.These lathes can perform to turn end-faces,cylindricl surfaces and internalholes of various parts as well as metric,inch,module and pitch threads. 2.The top slides can be  operatedindividually by power for cutting short taper surface. 3.Long taper surface can be turned automatically through the compound movement  combining longitudinal feed with the top slidefeed, more over, the machines may be used  for drilling,boring and trepanning. 4.They are characteristics of power,high spindle speed,high rigidity. 5.The various ferrous and non-ferrous metals parts may be turned through theheavy cutting by carbon alloy tools.
Order via WhatsApp
Nationwide
Delivery
Pay via
M-Pesa
100% Genuine
Products

Genuine & Warranted

Sourced from trusted suppliers with manufacturer-backed warranty.

Fast Nationwide Delivery

Countrywide dispatch with reliable courier partners across Kenya.

Expert Support

Talk to our team on WhatsApp for specs, quotes and bulk orders.

Product Description

CW61125L CW61140L CW61160L CW61180L CW61190L
Max.swing diameter over bed 1250 1400 1600 1800 1900
Max.swing diameter over crossslide 880 1030 1230 1400 1500
Width of bed 1100mm
Max.length of workpiece 1000 -8000mm
Spindle nose A15
Sindle bore diameter 130mm
Taper of spindle bore Metric No.140#
Range of spindle speed 3.15-315r/min 21kinds
Longitudinal feeds range 0.1-12mm/r 56 kinds
Transversal feeds range 0.05-6mm/r 56kinds
Metrec thread range 1-120mm 44kinds
Inch thread range 3/8-28TPI 31kinds
Module thread range 0.5-60mm 45kinds
Pitch thread range 1-56TPI 25kinds
Tailstock sleeve taper Metric 80#
Tailstock sleeve diameter 260mm
Tailstock sleeve travel 200mm
Main motor power 30kW
Rapid motor power 1.5kW
Coolant pump power 0.125kW

Ask about this product

Get an instant answer about specs, availability and more.

AI-generated — verify critical specs with sales.

Related Products

You may also like these

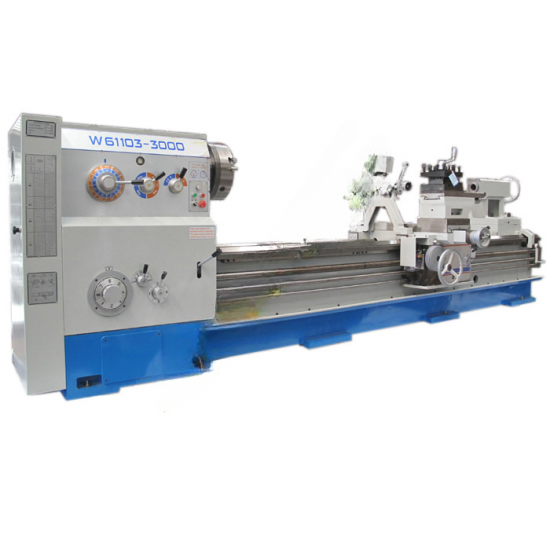

Heavy Duty Horizontal Lathe Machine CW62103C
Heavy Duty Horizontal Lathe Machine C61160

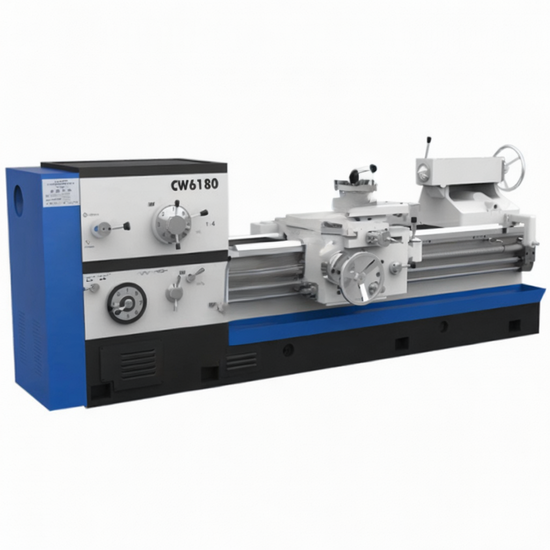

Heavy duty and horizontal lathe machine CW6280A
