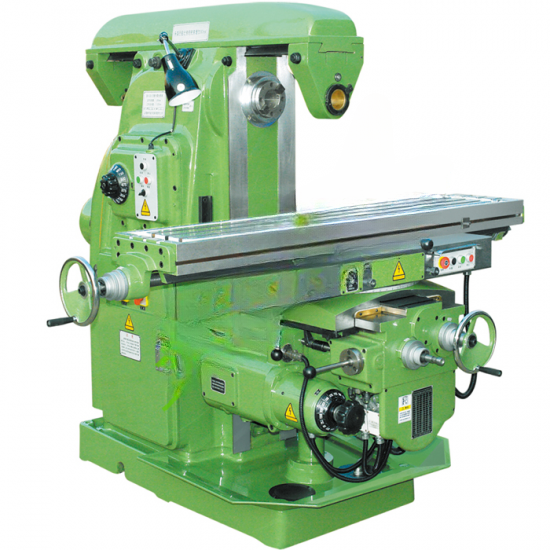

Horizontal knee-type milling machine XL6132,XL6136
Main Features:
1. extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
2. Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
3. Large work area of 1600x 360 mm and upto 450 kg table load capacity
4. Quiet, precision-made head stock gears with hardened and ground gears
5. Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
6. 5.5 kW main drive guarantees high torque
7. Coolant system and chip tray are Included
Delivery
M-Pesa
Products
Genuine & Warranted
Sourced from trusted suppliers with manufacturer-backed warranty.
Fast Nationwide Delivery
Countrywide dispatch with reliable courier partners across Kenya.
Expert Support
Talk to our team on WhatsApp for specs, quotes and bulk orders.
Product Description
| Specification | Unit | XL6132 | XL6132C | XL6132CL |
| XL6136 | XL6136C | XL6136CL | ||
| Table size | mm | 1325*320 | 1325*320 | 1600*320 |
| 1325*360 | 1325*360 | 1600*360 | ||
| Table Travel (X,Y,Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 |
| Spindle taper | --- | 7:24 ISO50 | ||
| Rapid speed of table (X,Y,Z) | mm/min | 1200/800/600 | ||
| Table feed (X,Y,Z) | mm/min | X:30-750 \ Y:20-500 \ Z：15--375 | ||
| T-slots（NO./Width/Pitch) | mm | 3/18/80 | ||
| Spindle speed range | r/min | 12steps 60-1800 | ||
| Distance between spindle nose and table surface | mm | 20-480 | 20-470 | |
| Distance between spindle axis and colomn guideway | mm | 175 | ||
| Main motor | kw | 5.5 | ||
| X,Y,Z to feed Ac servo motor torque | N.m | 10 | ||
| Overall size | mm | 1800*2100*1870 | 2245*21000*1870 | 2520*2100*1870 |
| Net weight | kg | 1550 | 1600 | 2500 |
| 2550 | ||||
