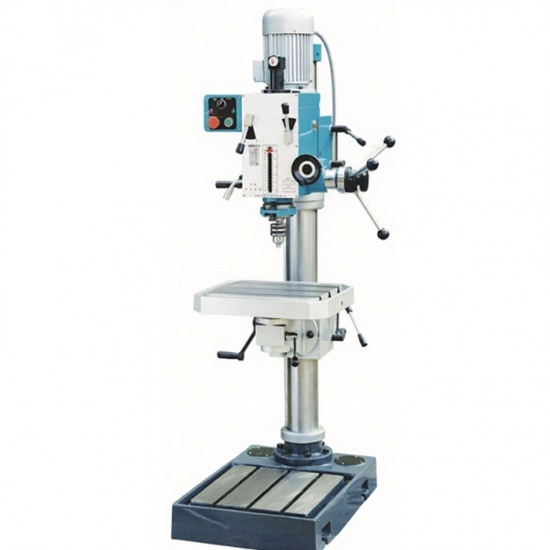

Round Column Drilling Machine Z5030A,Z5035A,Z5040A,Z5050A
Request a Quote
Out of Stock
Main Features:
1. New-designed,pleasing appearance,compact construction, wides speed change range,easy to operate.
2. Easy operation with its uniqueworkable,and both motor-drive and manual-operated lifting device.
3. The working table can be roteted180 and can be tited +45 and -45 also it is reliable and easy job can be done.
4. Equipped with coolant systemand tapping mechanism.
5. Equipped with short cut and overload protection, its electric, a system with powerful spindle-otormit designed according to IEC standard.
6. Characteristic protection device, small batch and mass production for drilling, counter boring, reaming,tapping, spot faing, ect.
Nationwide
Delivery
Delivery
Pay via
M-Pesa
M-Pesa
100% Genuine
Products
Products
Genuine & Warranted
Sourced from trusted suppliers with manufacturer-backed warranty.
Fast Nationwide Delivery
Countrywide dispatch with reliable courier partners across Kenya.
Expert Support
Talk to our team on WhatsApp for specs, quotes and bulk orders.
Product Description
| Model | Z5030A | Z5035A | Z5040A | Z5050A | |
| Max. drilling capacity(mm) | 30 | 35 | 40 | 50 | |
| Max. taping capacity(mm) | M20 | M24 | M30 | M30 | |
| Distance from spindle axis to of column(mm) | 320 | 330 | 360 | 360 | |
| Max. distance from spindle nose to work table surface(mm) | 550 | 590 | 590 | 570 | |
| Max. distance from spindle nose to base(mm) | 1100 | 1180 | 1180 | 1160 | |
| Max. spindle travel(mm) | 135 | 160 | 180 | 240 | |
| Swivel of table and table reat | ±45° | ±45° | ±45° | ±45° | |
| Spindle bore taper(Morse) | 3 | 4 | 4 or 5 | 4 | |
| Spindle steps | 12 | 12 | 12 | 12 | |
| Spindle speed(r/min) | 65-2600 | 75-2500 | 42-2050 | 42-2050 | |
| Spindle feed steps | 3 | 3 | 4 | 4 | |
| Spindle feed range(mm/r) | 0.1,0.2,0.3 | 0.1,0.2,0.3 | 0.07,0.15,0.26,0.4 | 0.07,0.15,0.26,0.4 | |
| Column diameter | 120 | 140 | 160 | 180 | |
| Dimension of worktable(mm) | 500x440 | 500x440 | 550x470 | 550x470 | |
| Dimension of base (mm) | 400x390 | 400x390 | 450x440 | 450x440 | |
| Dimension of T-slot (mm) | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | 2-14 2-16 | |
| Power of Main motor(kw) | 0.85/1.1 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 | |
| Packing size(cm) | 108x62x215 | 108x62x220 | 108x62x245 | 108x62x245 | |
| N.W./G.W.(kg) | 495/450 | 595/545 | 815/755 | 1045/985 | |
